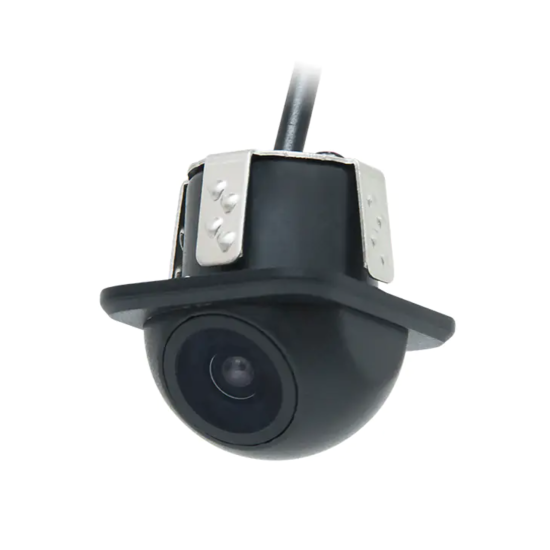

Reversing camera BLOW BVS-541

A reversing camera is a modern system designed for motor vehicles. It checks the space behind the vehicle during reverse procedures. The device assists when reversing, but does not relieve the driver of the special attention required when reversing. The set is adapted for installation in passenger cars and vans.

Specification:

Image sensor: 1 / 3.6 inch CMOS
Resolution: 648x488
Measurement area: 4.9 x 3.7
Lens: F = 1.9mm / F = 2.0
Signal system: PAL
H-sync (kHz): 15625/15734
V-Sync (Hz): 50/60
Automatic gain control and backlight adjustment
Horizontal definition: 480 TV lines
Minimum Illumination: 0.01 Lux
Signal / noise: <48.0 [dB]
Image sensor viewing angle: 170 °
Vertical viewing angle: 90 °
Waterproof class: IP67
Voltage range: DC 9-15V
Video output: 1.0Vp-p / 75 Ω
Working Temperature: -20 ~ + 70 ° C, RH 95% Max
Storage temperature: -30 ~ + 80 ° C, RH 95% Max
